Adopting the best ergonomic design

Supports front and rear maintenance design, thin and lightweight

High refresh rate, high grayscale

High precision, seamless splicing

No fan design, environmentally friendly and silent

Neat and uniform appearance

Low power consumption, energy-saving and environmentally friendly

ame

LED screen (full color)

Light chip

SMT 3 in 1 black light

Pixel combination

1R1G1B 3 in 1

Pixel pitch

2.5mm

Pixel resolution

160000 dots/㎡

Module size

320mm×160mm

Module resolution

128×64dit

Max brightness

≥800cd/㎡

Horizontal view angle

160°

Vertical view angle

160°

Best view distance

≥2.5m

Planeness

≤0.1mm

Brightness uniformity

≥99%

Chromaticity uniformity

±0.003  Cx,Cy之内

Deviation of center to center distance of luminescent points

＜1%

Driving method

Current drive

Scanning method

1/32

Fresh frequency

3840Hz/1920Hz optional

Frame frequency

50/60 Hz

Brightness adjust

Manual/Automatic/Program Control

Correction

Support brightness and chromaticity point by point correction

Control method

Synchronous control/asynchronous control

Control distance

＜100m

Cat 6 twisted pair network cable

100m～500m

Multimode fiber

500m～10Km

Singlemode fiber

SNR

≥47

Blind spot rate

≤50ppm， 0 before shipping

Full screen pixel loss rate

≤50ppm，0 before shipping

LED typical lie

100,000hours

Average consumption

170W/㎡

Max consumption

500W/㎡

Working temp/humidity

-10～40℃/10%～80%RH(no condensation)

Storage temp/humidity

-10～60℃/10%～85%RH(no condensation)

Maintenance method

Front maintenance


Project 1


1. LED Display
S/NProduct NameModelBrandTechnical parametersQtyUnitRemark
1Indoor P2.5 full color LED screenH2.5-1ZAXTEAMDisplay size（L/W/area）m4.481.60 7.1687.17m2warrany one year
Module size（L/W/area) mm320160
Module resolution128648192
Modulay array1410140
The project pixel points（L/W/total pixel points）17926401146880
Pixel pitch（mm）2.5
Fresh frequency3840Hz
Whole screen max consumption4.80KW
Power cable size4m2  1group
2video processorVX400Novastar1. 4 network ports output, with a maximum load of 2.6 million pixels.
2. Input interface: HDMI×2, DVI/SDI/OPT1-1/OPT1-2/MOSAIC		1.00pc
3LED screen control softwareV1.0NovastarA professional software for controlling and playing LED displays. Support media file playback in the forms of video, audio, images, text, Flash, Gif, etc; Support Word, Excel, and PPT display for Microsoft Office; Support clock, timing, and weather forecast display; Support external video signals (TV, AV, S-Video, composite video) playback; Support multi page and multi partition program editing; The software provides rich and flexible video switching functions, partition effects, and 3D animation effects, allowing the display effect of the screen to be perfectly displayed.1.00setinclude
4receive cardMRV412Novastar12xHUB75, 512*512 load capacity14.00setinclude
5Power card

LED module power 5V 40A24.00pcinclude
Supporting equipment
1Power distribution

Intelligent control with a total load power of 10KW
The components include an air circuit breaker, main switch, display screen switch, isolation switch, and grounding switch.		1.00 pc
2E structure mounting


7.79 m2


 Project 2


2. LED Display
S/NProduct NameModelBrandTechnical parametersQtyUnitRemark

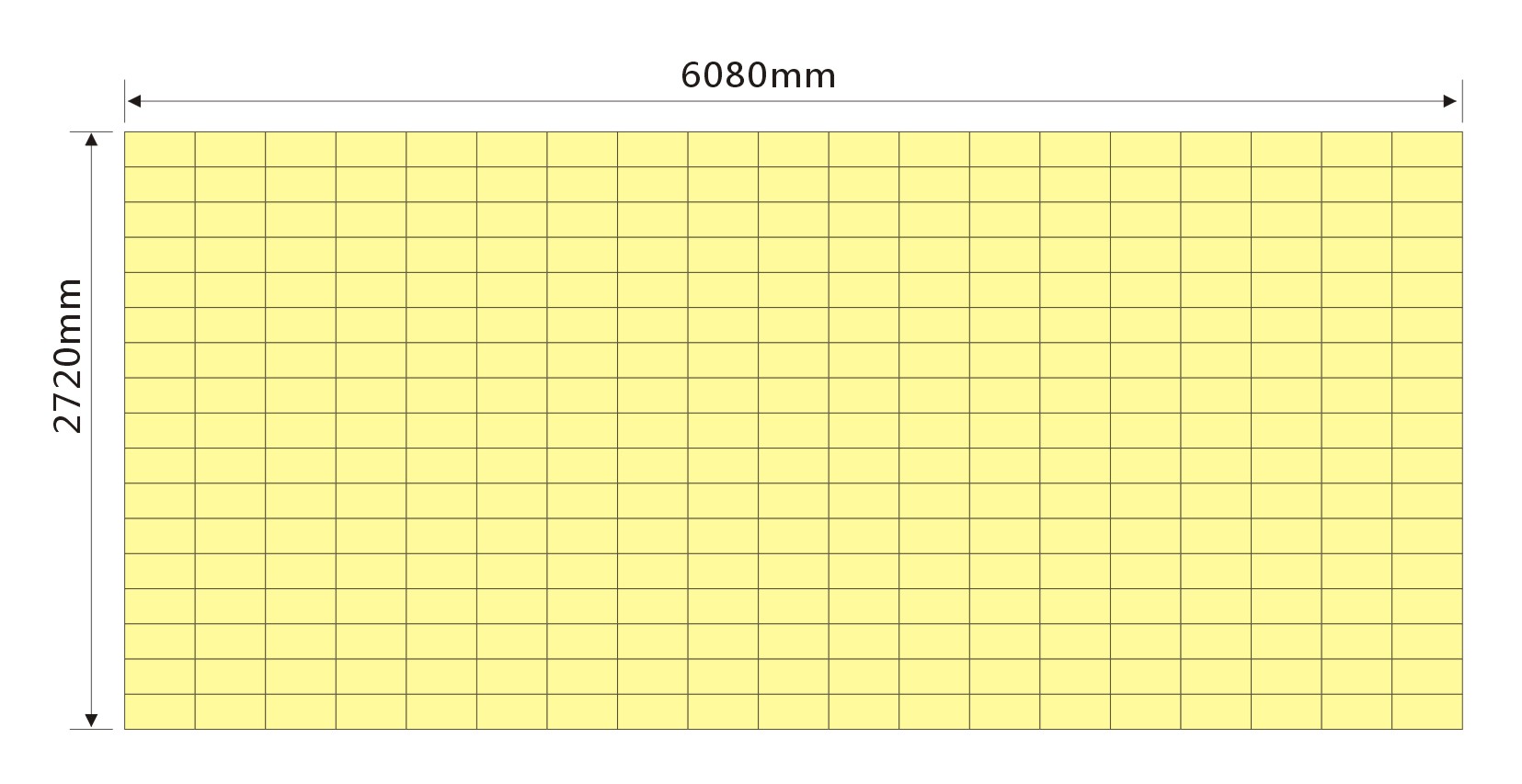

1Indoor P2.5 full color LED screenH2.5-1ZAXTEAMDisplay size（L/W/area）m6.082.72 16.537616.54m2warrany one year
Module size（L/W/area) mm320160
Module resolution128648192
Modulay array1917323
The project pixel points（L/W/total pixel points）243210882646016
Pixel pitch（mm）2.5
Fresh frequency3840Hz
Whole screen max consumption10.80KW
Power cable size4m2  2group
2video processorVX600Novastar1. 6 network ports output, with a maximum load of 3.9 million pixels.
2. Input interface: HDMI × 2. DVI × 1. SDI × 1. OPT optical port × 1		1.00pc
3LED screen control softwareV1.0NovastarA professional software for controlling and playing LED displays. Support media file playback in the forms of video, audio, images, text, Flash, Gif, etc; Support Word, Excel, and PPT display for Microsoft Office; Support clock, timing, and weather forecast display; Support external video signals (TV, AV, S-Video, composite video) playback; Support multi page and multi partition program editing; The software provides rich and flexible video switching functions, partition effects, and 3D animation effects, allowing the display effect of the screen to be perfectly displayed.1.00setinclude
4receive cardMRV412Novastar12xHUB75, 512*512 load capacity30.00setinclude
5Power card

LED module power 5V 40A54.00pcinclude
Supporting equipment
1Power distribution

Intelligent control with a total load power of 20KW
The components include an air circuit breaker, main switch, display screen switch, isolation switch, and grounding switch.		1.00 pc
2E structure mounting


17.43 m2
